Panorama

Product Details

Material: Aluminium, Glass
Max Expansion: 4500m
Recyclable: 98%
Click to review

Let’s Start Work
Together

If you are interested in this product, please contact us for further assistance.

Description
Details
Certification

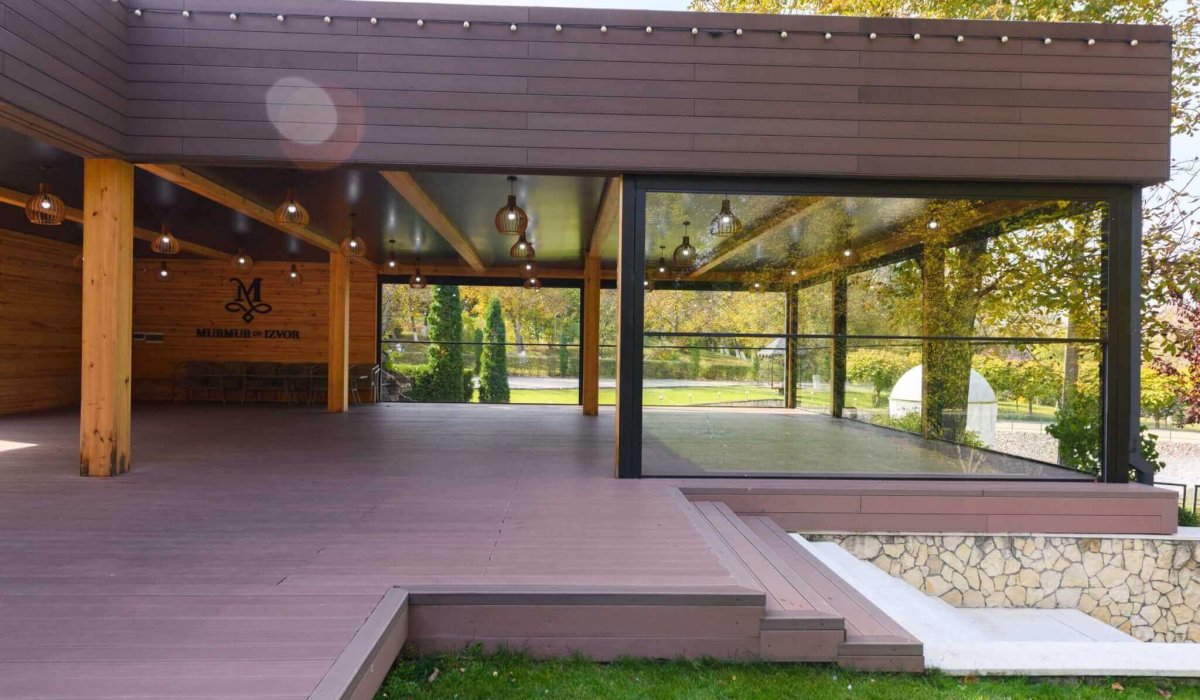

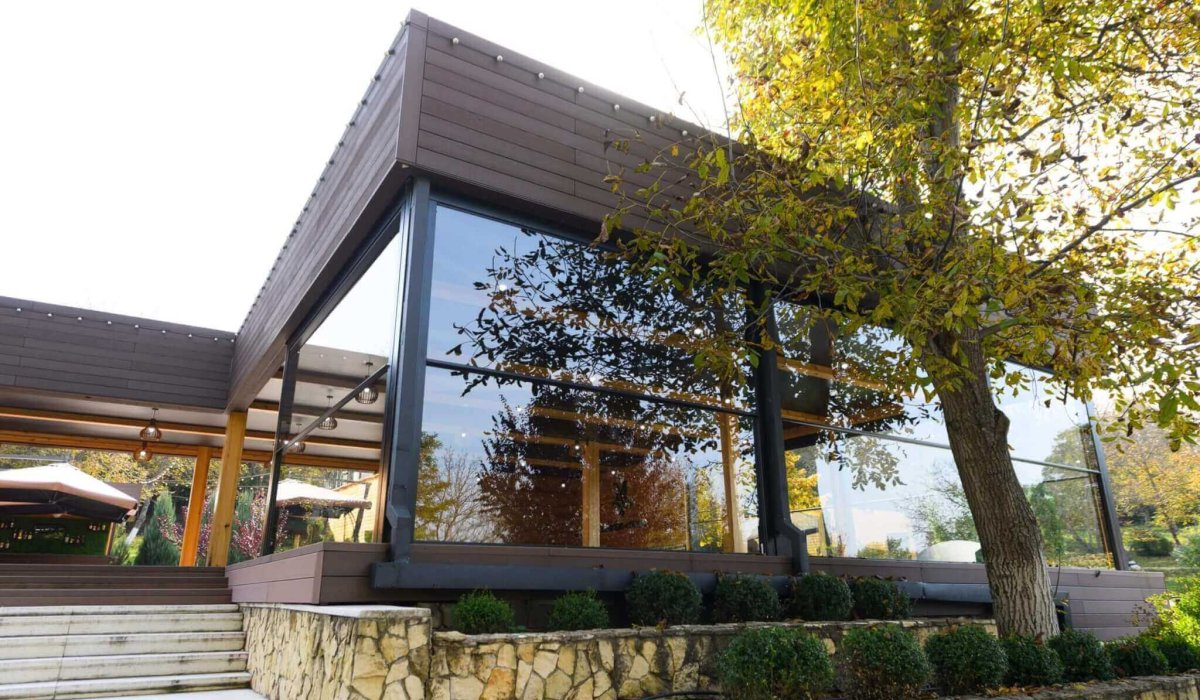

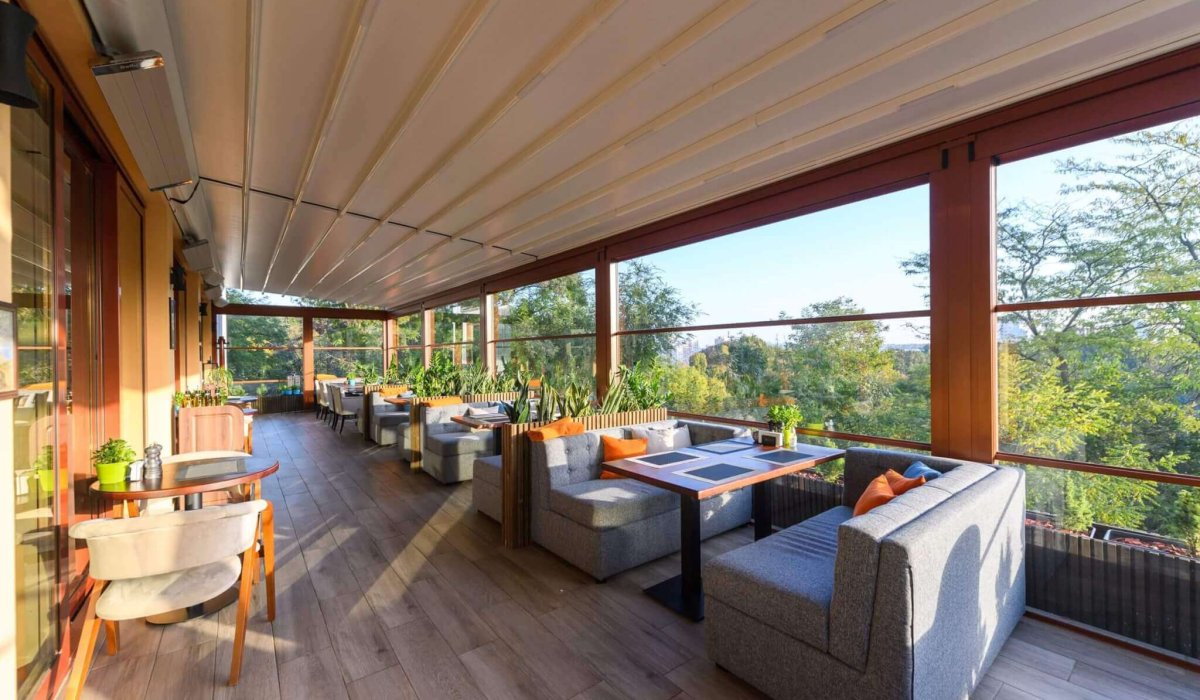

The Panorama system is a unique product today, whereas traditional glazing solutions are inadequate in aesthetics and functionality. Panorama, which we sell under the HUUN brand, is sold to more than 40 countries and has all test and certification documents.

The basic working principle of the system is the motor-gear-chain system that has been used, allowing the glass to move from bottom to top, transforming the application area into an open or closed space. Although this system is known as the Guillotine system in the market, we, as HUUN, sell it under Panorama.

Panorama (Guillotine) glass system is the most suitable solution with its features among existing systems. Thanks to its adjustable opening level and easy use with remote control, it provides great convenience in controlling the fresh air inside. It also acts as a handrail and provides security in the open position.

Panorama (Guillotine) Glass Systems make you experience the beauties of the seasons, not the negativities. With the Panorama system, you can experience the beauty of every season. In addition, the panorama system with movable and fixed windows allows you to be in control of the outdoors. You will have more comfortable spaces with your Controlled Spaces.

Industry-Leading Innovations

Elevate longevity with our exclusive gear system and stainless steel chain. Enjoy modular versatility thanks to our unique slider system. Experience ultimate heat and sound insulation with our insulated top panels and pillars.

Specialized Water Drainage System

Take waterproofing to the next level with optional threshold design. Ensure seamless water drainage with specialized connection parts. Even on sloped terrains, enjoy effortless installation with adjustable fixed glass profiles.

Modular Structure

Enjoy easy assembly with segmented pillar design. Aluminum corner connections ensure strong and secure usage. Extend motor lifespan with chain and counterweight mechanisms.

Panorama
Panorama Thermal
Panorama Lagoon
Min Max
X 2000mm 4500mm
Y 2000mm 4000mm
Max m²
12 m²
  • System dimensions must remain between the minimum and maximum dimensions given above.
  • Regardless of system dimensions, the total area of a system cannot exceed 12 meters squared
Min Max
X 2000mm 4500mm
Y 2000mm 3500mm
Max m²
9,5 m²
  • System dimensions must remain between the minimum and maximum dimensions given above.
  • Regardless of system dimensions, the total area of a system cannot exceed 9,5 meters squared
Min Max
X 2000mm 3750mm
Y 2000mm 3500mm
Max m²
9,5 m²
  • System dimensions must remain between the minimum and maximum dimensions given above.
  • Regardless of system dimensions, the total area of a system cannot exceed 9,5 meters squared

F.A.Q.

A sash window with a guillotine mechanism, commonly known as a guillotine window, is a type of vertically sliding window where one or both sashes move up and down within the frame. This mechanism allows for easy operation and efficient ventilation.

Guillotine windows are typically made of materials like wood, uPVC (unplasticized polyvinyl chloride), or aluminum. These materials offer durability, weather resistance, and aesthetic versatility to suit various architectural styles.

Guillotine windows provide several benefits, including easy operation, efficient ventilation control, and a classic aesthetic appeal. They are also space-saving since they don't protrude inward or outward when opened, making them ideal for tight spaces or areas with limited clearance.

Guillotine windows can be designed to be energy efficient by incorporating features like double or triple glazing, weatherstripping, and insulated frames. These enhancements help minimize heat loss during colder months and reduce heat gain in warmer weather, contributing to overall energy savings.

Guillotine windows are typically installed by professional window installers who specialize in handling various types of windows. Installation involves precise measurement, preparation of the window opening, securing the window frame in place, and ensuring proper sealing to prevent air or water leaks.
